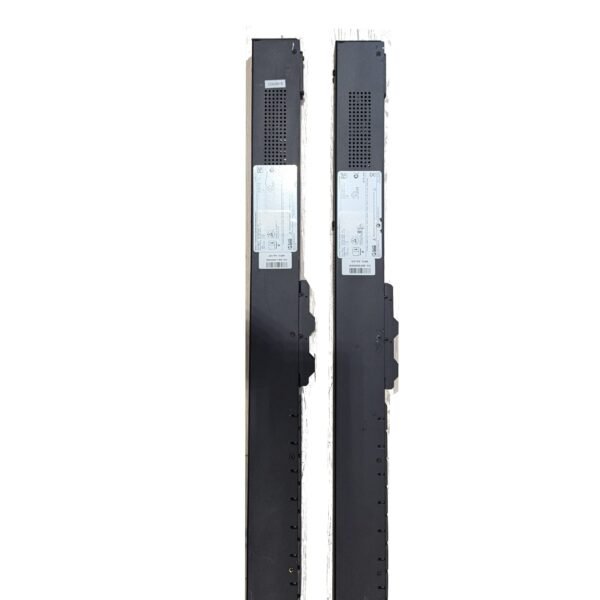

Server Technology CW/CX-24V2-C20M Switched PDUs 240V 48-C13-Outlets L6-20P


Out of stock

SKU: 354405507078 Category:

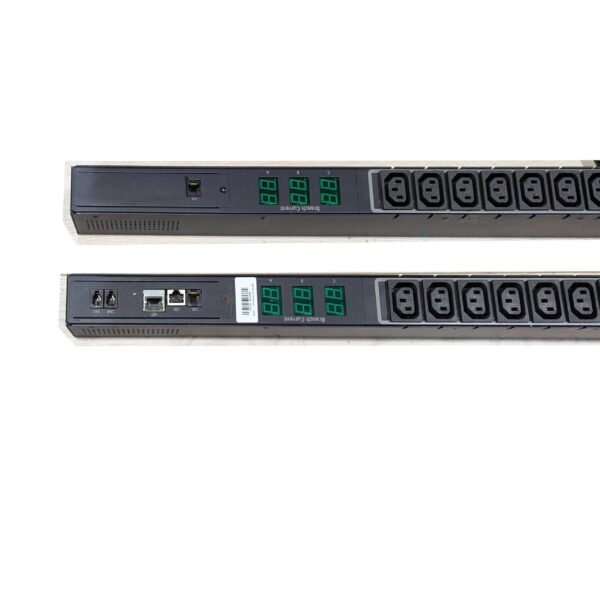

This is for one pair of used Server Technology CW/CX-24V2-C20M Switched PDUs 240V 24-C13-Outlets (48 Total Outlets) L6-20P. These are full-featured Server Tech PDUs with remote monitoring and remote switching capabilities. These PDU’s have three power meter displays – one for each bank.

  • Includes one master PDU CW-24V2-C20M and one link PDU CX-24V2-C20M as pictured above. Also includes two C19 to L6-20P power cables, a link cable, and button mount hardware. No other parts or accessories are included.
  • These pdu’s are in good working and in good cosmetic condition. Cosmetic defects include light scratches and scuff marks.

Technical Specifications

  • Input Plug Type: NEMA L6-20P
  • Input Current (A): 20
  • Input Nominal Voltage (V): 208-240
  • Input Phase: 1-Phase
  • Outlets: (24) IEC C13


  • Outlet Control: Individual outlet remote on/off switching. Cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
  • Network Monitoring: Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
  • PIPS (Per Input Power Sensing): Accurately measures Active Power, Apparent Power, Energy k-Wh, Power Capacity, and Power Capacity Used using the network interface. See the aggregate current draw, in Amps, locally using the onboard LED.
  • Branch Circuit Protection: This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.

Product Information

Manufacturer: Server Technology
MPN: CW-24V2-C20M, CX-24V2-C20M
Shipping Weight: 32 lbs.
Shipping Dimensions: 72 x 6 x 6 Inches

Store Policies


  • Orders are generally shipped within 1 business day of receipt of cleared payment.
  • Free shipping items may be sent by FedEx, UPS, or USPS.


Residents of California will be charged sales tax. Remote sales tax is also applicable if required by your state. International buyers are responsible for all VAT taxes, import fees and duties.


Your satisfaction is always our top priority. We want you to be completely satisfied with your purchase.

  • Returns and exchanges are allowed for any reason within 30 days of receipt of your order.
  • We provide free return shipping.
  • No restocking fees.
  • Packaging materials must be kept in the event an insurance claim is required.
  • Original shipping costs are non-refundable based upon buyer’s remorse or compatibility issues.

Additional information

Weight 32.00 lbs
Dimensions 72 × 6 × 6 in


CW-24V2-C20M, CX-24V2-C20M

Input Connector


IEC C13, NEMA L6-20P

Voltage Compatibility

208 V, 240 V


Power Distribution Panel


CW-24V2-C20M, CX-24V2-C20M

Number of Outlets



Remote Switching, Rack Mountable, Remote Monitoring

Condition Used
Notes These PDU's are in good working and in good cosmetic condition. Cosmetic defects include light scratches and scuff marks.
