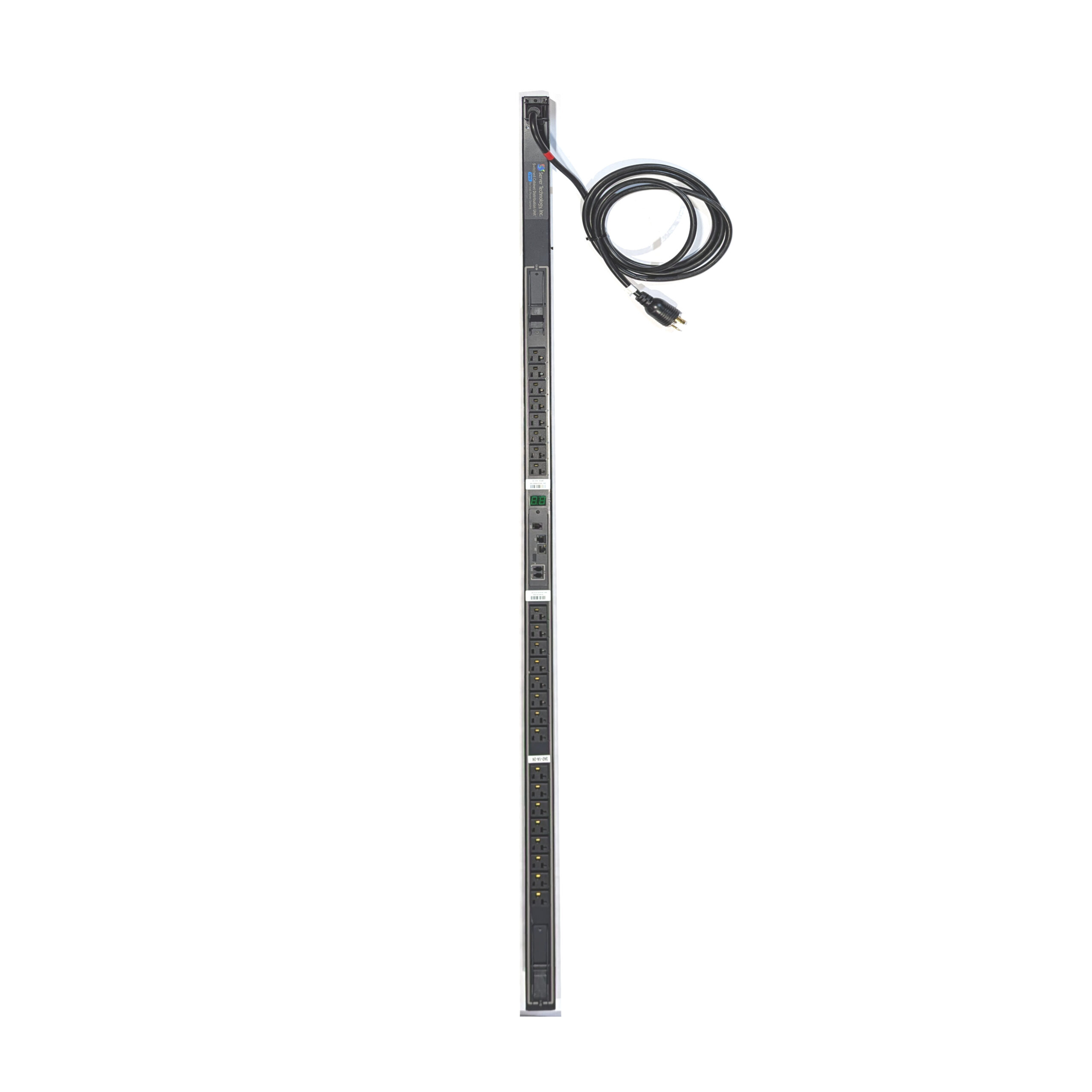

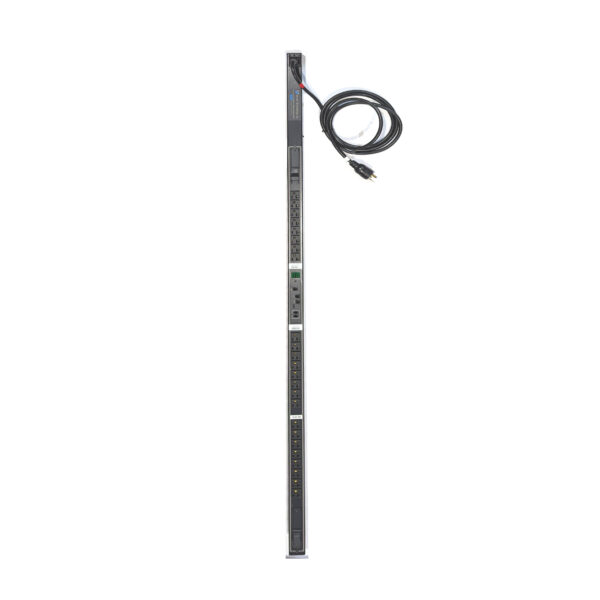

This is for one used Server Technology CW-24V1A325 Switched PDU 120V 24-Outlets L5-20P. This is a full-featured Server Tech PDU with power monitoring, separate branch power metering and outlet switching capabilities.
- Includes one Server Technology CW-24V1A325 Switched PDU 120V 24-Outlets L5-20P as pictured above. Also includes button mount hardware. No other parts or accessories are included.
- This PDU is in good working and in good cosmetic condition. Cosmetic defects include light scratches and scuff marks.
Technical Specifications
-
- Input Power Capacity (kW): 1.9
- Input Plug Type: NEMA L5-20P
- Input Current (A): 20
- Input Current Rated (A): 16
- Input Nominal Voltage (V): 100-120
- Input Phase: 1
- Outlets:
- (24) NEMA 5-20R
- Dimensions: 65.5in tall x 1.75in wide x 2.25in deep [1664mm x 45mm x 58mm]
Features
- Outlet Control: Individual outlet remote on/off switching. Cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
- Network Monitoring: Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
- PIPS (Per Input Power Sensing): Accurately measures Active Power, Apparent Power, Energy k-Wh, Power Capacity, and Power Capacity Used using the network interface. See the aggregate current draw, in Amps, locally using the onboard LED.
- Branch Circuit Protection: This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
Product Information
Manufacturer: Server Technology
MPN: CW-24V1A325
Shipping Weight: 16 lbs.
Shipping Dimensions: 72 x 6 x 6 Inches
