This is for one pair of used Server Technology CW/CX-24V2C311A1 Switched PDUs 208V C13 C19 L6-30P. These are full-featured PDUs with 24-outlets per PDU (18x IEC C13 & 6x IEC C19), remote monitoring, remote switching capabilities, and three branch display power meters.

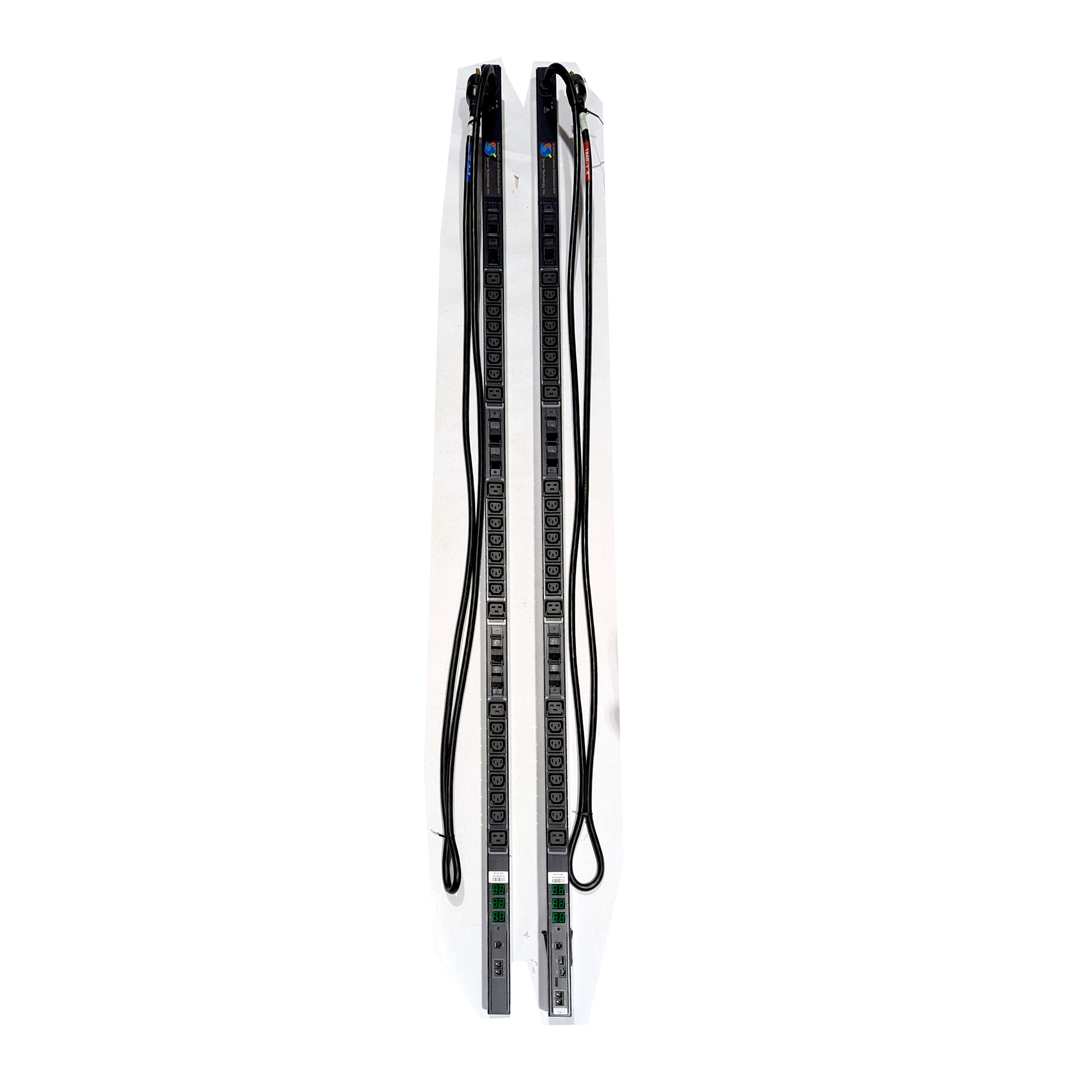

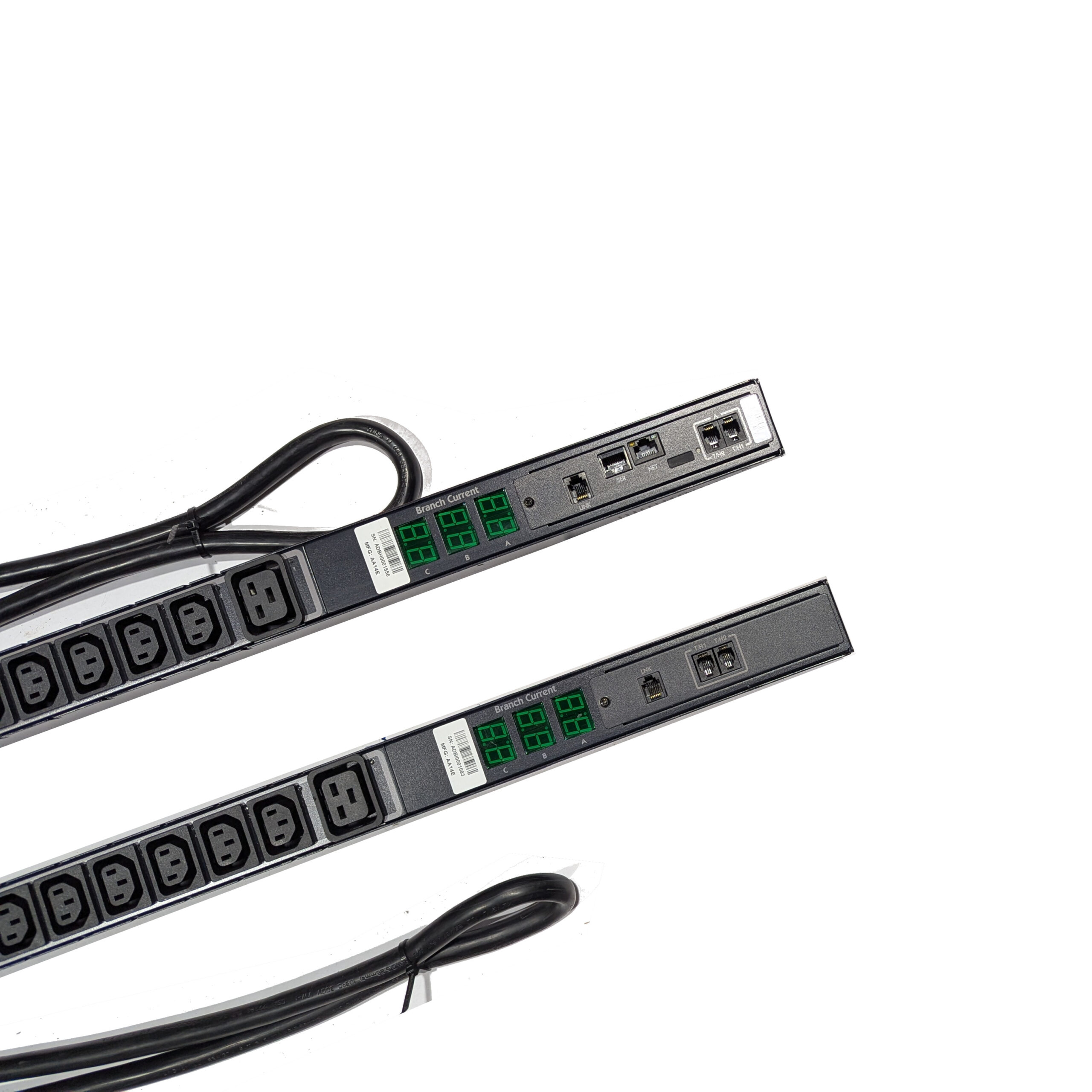

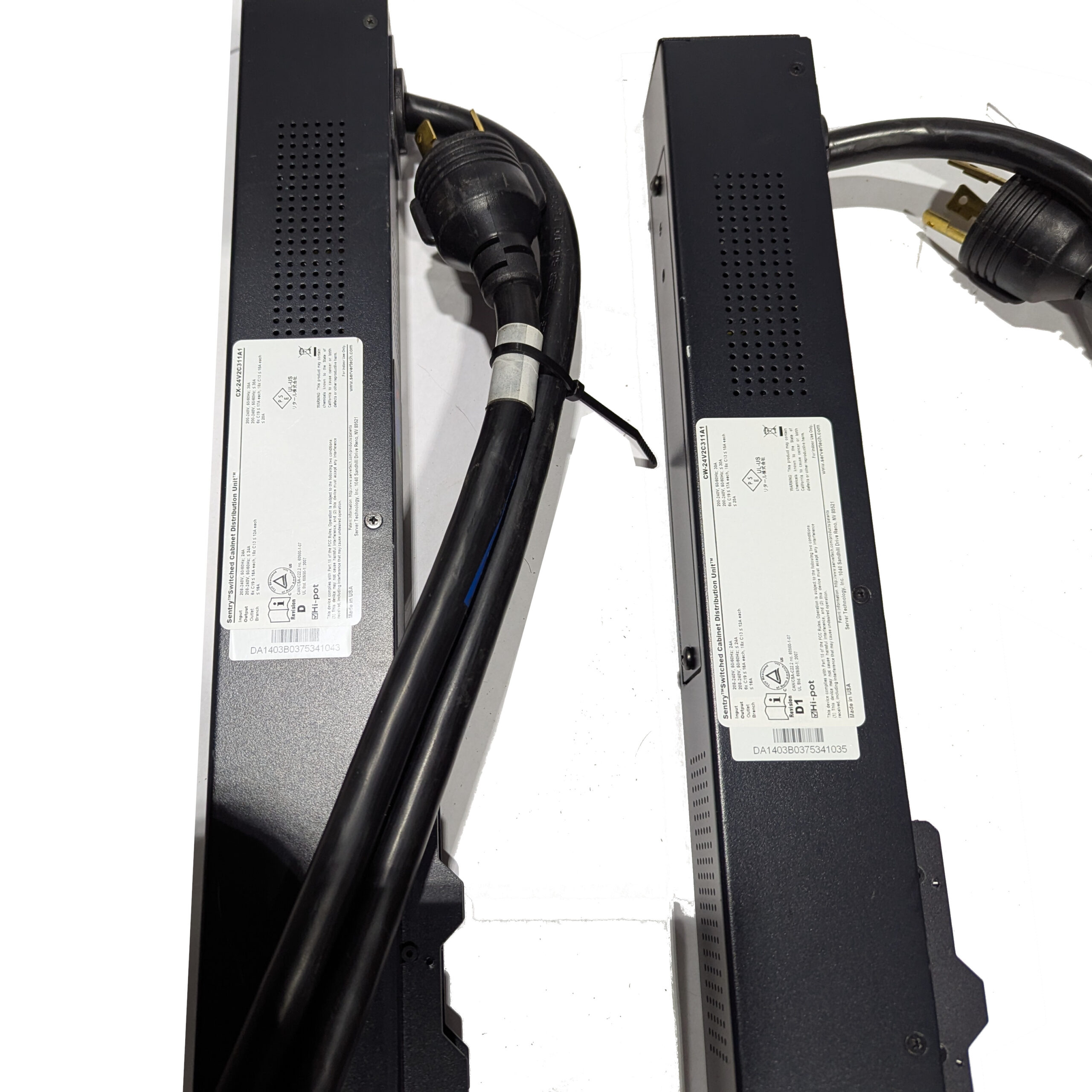

- Includes one master Server Technology PDU CW-24V2C311A1 and one link PDU CX-24V2C311A1 as pictured above. Also includes a link cable and button mount hardware. No other parts or accessories are included.
- These PDUs are in good working and in good cosmetic condition. Cosmetic defects include light scratches and scuff marks.
Technical Specifications
- Input Power Capacity (kW): 5.0
- Input Plug Type: NEMA L6-30P
- Input Current (A): 30
- Input Current Rated (A): 24
- Input Nominal Voltage (V): 208-240
- Input Phase: 1-Phase
- Outlets:
- (18) IEC C13 & (6) IEC C19
- Dimensions: 69.0in tall x 1.75in wide x 2.25in deep [1753mmx 45mmx 58mm]
Features
- Outlet Control: Individual outlet remote on/off switching. Cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
- Network Monitoring: Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
- PIPS (Per Input Power Sensing): Accurately measures Active Power, Apparent Power, Energy k-Wh, Power Capacity, and Power Capacity Used using the network interface. See the aggregate current draw, in Amps, locally using the onboard LED.
- Branch Circuit Protection: This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
Product Information
Manufacturer: Server Technology
MPN: CW-24V2C311A1 CX-24V2C311A1
Shipping Weight: 34 lbs.
Shipping Dimensions: 72 x 6 x 6 Inches
