This is for one used Server Technology CS-48VDX454A1/AA Smart PDU 240V 17.3kW 48A 3-PH 48-Outlets IEC 60309 Plug. This is a master Server Technology Smart PDU providing local LED input current monitoring to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. It also provides accurate measurement of current (billing-grade), voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input.

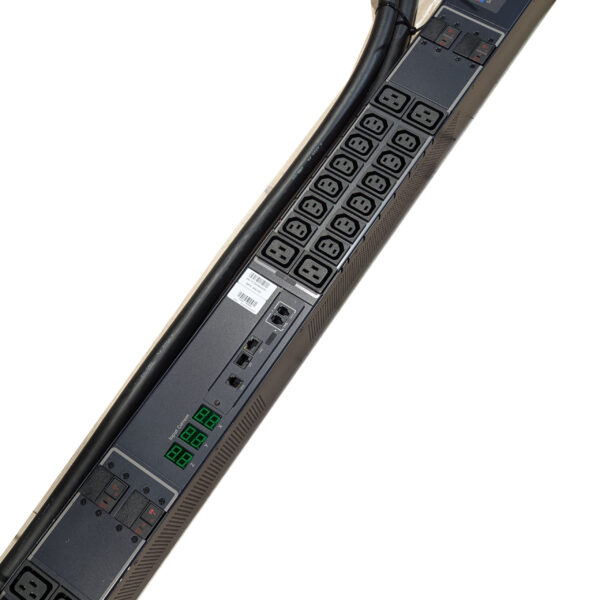

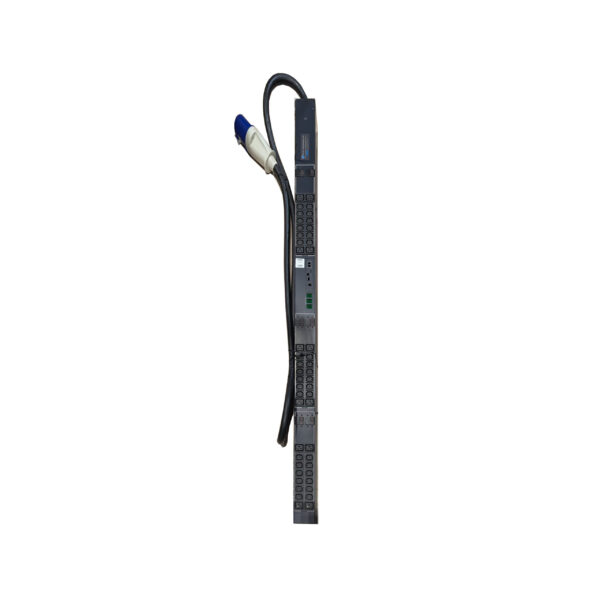

- Includes one Server Technology CS-48VDX454A1/AA Smart PDU 240V 17.3kW 48A 3-PH 48-Outlets IEC 60309 Plug as pictured above. Also includes button mount hardware. No other parts or accessories are included.
- This PDU is in good working and in good cosmetic condition. Cosmetic defects include light scratches and scuff marks.
Technical Specifications
- Input Power Capacity (kW): 17.3

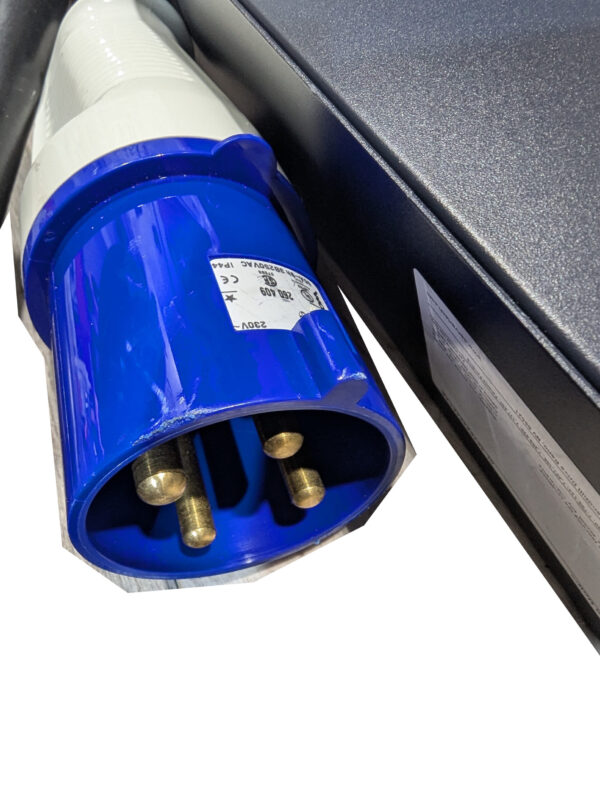

- Input Plug Type: IEC 60309 Plug
- Input Current (A): 60
- Input Current Rated (A): 48
- Input Nominal Voltage (V): 240
- Input Phase: 3-Phase (3W+PE)
- Outlets:
- (36) IEC C13 (208V)
- (12) IEC C19 (208V)
Features
- Network Monitoring: Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
- PIPS (Per Input Power Sensing): Accurately measures Active Power, Apparent Power, Energy k-Wh, Power Capacity, and Power Capacity Used using the network interface. See the aggregate current draw, in Amps, locally using the onboard LED.
- Branch Circuit Protection: This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
Product Information
Manufacturer: Server Technology
MPN: CS-48VDX454A1/AA
Shipping Weight: 36 lbs.
Shipping Dimensions: 80 13 x 8 Inches
